Atmintis - DIMM lizdų skaičius - 16
Atmintis - Palaikomi atminties tipai - DDR5-SDRAM
dimensionalWeight - 33531
Dizainas - LED indikatoriai - Taip
Dizainas - Produkto spalva - Juoda
Dizainas - Produkto spalva - Juoda, plienas
Dizainas - Produkto spalva - Plieno
Dizainas - sertifikavimas - BSMI, CE, RCM, FCC(Class A)
Dizainas - Važiuoklės tipas - Stovas (2U)
dydisX - 1105
Eksploatavimo sąlygos - Darbinė santykinė drėgmė (H-H) - 20 - 90%
Eksploatavimo sąlygos - Darbinė temperatūra (T-T) - 10 - 35 °C
Eksploatavimo sąlygos - Laikymo temperatūra (T-T) - -40 - 70 °C
Eksploatavimo sąlygos - Sandėliavimo santykinė drėgmė (H-H) - 20 - 90%
Funkcijos - Integruotas BMC su IPMI - Taip
Funkcijos - Patikimo platformos modulio (TPM) versija - 2.0
Funkcijos - patikimos platformos modulis (TPM) - Taip
Funkcijos - Suderinamos operacinės sistemos - Windows Server
RedHat® Enterprise Linux
SuSE® Linux Enterprise Server
CentOS
Ubuntu
Vmware
GarantijaInformacija -
garantijaType - G
GTIN - 4711387029756
Išplėtimo lizdai - "PCI Express" lizdų versija - 5.0
Išplėtimo lizdai - "PCI Express x8" lizdai - 1
Išplėtimo lizdai - "PCI Express x16" lizdai - 14
Kategorija - Serverio "Barebones
LongDesc - Accelerate performance for HPC and AI workloadsFour dual-slot GPU compute in 2UESC4000-E11 is a dual-socket server powered by 4th Gen Intel Xeon Scalable processors and built for the demands of enterprise AI infrastructure to deliver unprecedented performance with industry-leading GPUs, faster GPU interconnect and higher-bandwidth fabric, and supports up to four dual-slot active or passive GPUs scalable configuration with a choice of NVIDIA NVLink® Bridge to enable scaling of performance with increased bandwidth — ready to match your AI and HPC workloads.PCIe 5.0 ReadyFaster storage, graphics and networking capabilitiesPCI Express® (PCIe®) 5.0 delivers 32 GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better lane scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready, with scalable designs to satisfy the increasing workloads or modern data centers.SustainabilityKeep your data center greenData centers can consume huge amounts of electricity, raising environmental concerns. ASUS servers are designed to optimize both total cost of ownership (TCO) and total cost to the environment (TCE), including thermal design, power efficiency and advanced cooling solutions — reducing the impact of our products on the planet.Optimized Thermal DesignIndependent CPU and GPU airflow tunnelsOur servers features a streamlined design with dedicated CPU and GPU airflow tunnels for seriously efficient heat dissipation. This advanced design provides better cooling for both the GPU and CPU, enabling heat to be expelled into the surrounding ambient air for greater energy efficiency and overall savings on system power.Titanium power suppliesUp to 96% efficient for operating cost reductionESC4000-E11 supports 2600 W 80 PLUS® Titanium redundant power supplies to ensure power is supplied to the system equally from all power sources, maximizing efficiency and enabling uninterrupted operation.ManagementComprehensive IT infrastructure solutionsAdvanced ASUS management tools comprise IT assets management, security and reliability to improve the performance, up-time and real-time monitoring of the servers remotely — highly increasing the efficiency of IT infrastructure.IT infrastructure-management softwareStreamline IT operations via a single dashboardASUS Control Center (ACC) is remote IT-management software application designed for monitoring hardware and software IT assets and inventory status, and enabling seamless remote BIOS configurations and updates, efficient IT diagnostics and troubleshooting and enhanced security with hotfix updates — allowing easier server management for any IT infrastructure.Hardware Root-of-Trust SolutionDetect, recover, boot and protectASUS servers integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.Trusted Platform Module 2.0ASUS servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.NVIDIA Omniverse partnershipNVIDIA is dedicated to its partners and believes that a strong partnership is the foundation of mutual success.Strong partnership with 3D partnersConnect to the top industry apps your teams use every day, with plug-ins that enable live-sync collaboration and iteration across multiple software suites simultaneously — all brought together in Omniverse Enterprise.Full ASUS product lineup for Omniverse EnterpriseASUS has the world’s best PCs, servers, monitors and graphics cards. With an expanding range of superior content-creation and gaming products, ASUS leads the industry through innovation to create the most ubiquitous, intelligent productivity.Success casesReduce deployment risks with a complete suite of VMware data-center products for Omniverse EnterpriseServiceabilityImproved IT operational efficiencyTool-less CoverASUS servers feature three easy-access covers that can be opened without tools, enabling IT staff to perform maintenance on specific components without removing the server fully from the rack.Front-bezel Q-CodeASUS servers have a visible Q-Code/port-80 LED display LED for simple monitoring of the entire boot process, from power on through loading of the operating system.Hot-swap designASUS servers feature multiple hot-swap components, including fans, power supplies and storage for easy troubleshooting to keep 24/7 seamless operations.Performance4th Gen Intel® Xeon® Scalable ProcessorsThe 4th Gen Intel® Xeon® Scalable Processors are designed to accelerate performance across the fastest-growing workloads that businesses depend on today Built-in accelerators improve performance across AI, analytics, networking, storage, and HPC. By making the best use of CPU core resources, built-in accelerators can result in more efficient utilization and power efficiency advantages, helping businesses achieve their sustainability goals.
LongProductName - 4th Gen Intel Xeon Scalable, C741 Chipset, 16 x DDR5, 2 x 2.5”, 2 x 2.5” SATA/SAS, 2 x 3.5” SATA/SAS*/NVMe + 2 x 3.5” SATA/SAS, 2 x 1 Gigabit LAN, 1 x Management Port, 6x USB 3.2 Gen 1, 2x 1GbE LAn, 1 VGA, LED, 800mm x 439.5mm x 88.9mm (2U), 26 kg
LongSummaryDescription - ASUS 90SF0251-M004X0. Motherboard chipset: Intel C741, Processor manufacturer: Intel, Processor family: Intel® Xeon® Scalable. Supported memory types: DDR5-SDRAM. Storage drive sizes supported: 2.5,3.5,M.2, Supported storage drive interfaces: Serial ATA, Serial Attached SCSI (SAS). Ethernet interface type: Gigabit Ethernet, LAN controller: Intel® I350. Compatible operating systems: Windows Server RedHat® Enterprise Linux SuSE® Linux Enterprise Server CentOS Ubuntu Vmware
Maitinimas - 80 PLUS sertifikatas - 80 PLUS Titanium
Maitinimas - maitinimo šaltinis - 2600 W
Maitinimas - palaikomų nereikalingų maitinimo šaltinių skaičius - 2
Maitinimas - rezervinio maitinimo šaltinio (RPS) palaikymas - Taip
Pakuotės duomenys - Komplektuojamoji programinė įranga - ASUS Control Center
ASUS ASMB11-iKVM
Pakuotės duomenys - Pakuotės svoris - 36.8 kg
Pavadinimas - ASUS 90SF0251-M004X0 server barebone Intel C741 Rack (2U) Black, Steel
Prekės ženklas - ASUS
Prekės ženklo dalies kodas - 90SF0251-M004X0
Prievadai ir sąsajos - Ethernet LAN (RJ-45) prievadai - 2
Prievadai ir sąsajos - IPMI LAN (RJ-45) prievadas - Taip
Prievadai ir sąsajos - USB 3.2 Gen 1 (3.1 Gen 1) A tipo prievadų kiekis - 6
Prievadai ir sąsajos - VGA (D-Sub) prievadų kiekis - 1
Procesorius - Pagrindinės plokštės mikroschemų rinkinys - "Intel C741
Procesorius - Procesoriaus gamintojas - "Intel"
Procesorius - Procesorių šeima - "Intel® Xeon® Scalable
Procesorius - įmontuotas procesorius - Ne
producerCode - 90SF0251-M004X0
productName - ASUS 90SF0251-M004X0 server barebone Intel C741 Rack (2U) Black, Steel
productSize - Normalus
Produkto pavadinimas - 90SF0251-M004X0
Saugykla - "Hot-swap" HDD lizdai - Taip
Saugykla - 2,5 colio dėžučių skaičius - 2
Saugykla - 3,5 colio dėžučių skaičius - 4
Saugykla - Palaikomi saugyklos diskų dydžiai - 2.5
Saugykla - Palaikomi saugyklos diskų dydžiai - 2.5,3.5,M.2
Saugykla - Palaikomi saugyklos diskų dydžiai - 3.5"
Saugykla - Palaikomi saugyklos diskų dydžiai - M.2
Saugykla - Palaikomos saugyklos disko sąsajos - Serial ATA, Serial Attached SCSI (SAS)
Saugykla - palaikomų saugojimo diskų skaičius - 6
ShortSummaryDescription - ASUS 90SF0251-M004X0, Intel C741, Intel, Intel® Xeon® Scalable, DDR5-SDRAM, 2.5,3.5,M.2, Serial ATA, Serial Attached SCSI (SAS)
sizeY - 255
sizeZ - 595
svoris - 32860
Svoris ir matmenys - Aukštis - 88.9 mm
Svoris ir matmenys - Gylis - 800 mm
Svoris ir matmenys - Plotis - 439.5 mm
Svoris ir matmenys - Svoris - 26 kg
Tinklas - Ethernet LAN - Taip
Tinklas - Ethernet sąsajos tipas - Gigabit Ethernet
Tinklas - LAN valdiklis - "Intel® I350
URL - https://servers.asus.com/products/servers/gpu-servers/ESC4000-E11
warrantyLength - 36
Memory - Number of DIMM slots - 16
Memory - Supported memory types - DDR5-SDRAM
dimensionalWeight - 33531
Design - LED indicators - Yes
Design - Product colour - Black
Design - Product colour - Black, Steel
Design - Product colour - Steel
Design - Certification - BSMI, CE, RCM, FCC(Class A)
Design - Chassis type - Rack (2U)
sizeX - 1105
Operational conditions - Operating relative humidity (H-H) - 20 - 90%
Operational conditions - Operating temperature (T-T) - 10 - 35 °C
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Operational conditions - Storage relative humidity (H-H) - 20 - 90%
Features - Integrated BMC with IPMI - Yes
Features - Trusted Platform Module (TPM) version - 2.0
Features - Trusted Platform Module (TPM) - Yes
Features - Compatible operating systems - Windows Server
RedHat® Enterprise Linux
SuSE® Linux Enterprise Server
CentOS
Ubuntu
Vmware
WarrantyInfo -
warrantyType - G
GTIN - 4711387029756
Expansion slots - PCI Express slots version - 5.0
Expansion slots - PCI Express x8 slots - 1
Expansion slots - PCI Express x16 slots - 14
Category - Server Barebones
LongDesc - Accelerate performance for HPC and AI workloadsFour dual-slot GPU compute in 2UESC4000-E11 is a dual-socket server powered by 4th Gen Intel Xeon Scalable processors and built for the demands of enterprise AI infrastructure to deliver unprecedented performance with industry-leading GPUs, faster GPU interconnect and higher-bandwidth fabric, and supports up to four dual-slot active or passive GPUs scalable configuration with a choice of NVIDIA NVLink® Bridge to enable scaling of performance with increased bandwidth — ready to match your AI and HPC workloads.PCIe 5.0 ReadyFaster storage, graphics and networking capabilitiesPCI Express® (PCIe®) 5.0 delivers 32 GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better lane scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready, with scalable designs to satisfy the increasing workloads or modern data centers.SustainabilityKeep your data center greenData centers can consume huge amounts of electricity, raising environmental concerns. ASUS servers are designed to optimize both total cost of ownership (TCO) and total cost to the environment (TCE), including thermal design, power efficiency and advanced cooling solutions — reducing the impact of our products on the planet.Optimized Thermal DesignIndependent CPU and GPU airflow tunnelsOur servers features a streamlined design with dedicated CPU and GPU airflow tunnels for seriously efficient heat dissipation. This advanced design provides better cooling for both the GPU and CPU, enabling heat to be expelled into the surrounding ambient air for greater energy efficiency and overall savings on system power.Titanium power suppliesUp to 96% efficient for operating cost reductionESC4000-E11 supports 2600 W 80 PLUS® Titanium redundant power supplies to ensure power is supplied to the system equally from all power sources, maximizing efficiency and enabling uninterrupted operation.ManagementComprehensive IT infrastructure solutionsAdvanced ASUS management tools comprise IT assets management, security and reliability to improve the performance, up-time and real-time monitoring of the servers remotely — highly increasing the efficiency of IT infrastructure.IT infrastructure-management softwareStreamline IT operations via a single dashboardASUS Control Center (ACC) is remote IT-management software application designed for monitoring hardware and software IT assets and inventory status, and enabling seamless remote BIOS configurations and updates, efficient IT diagnostics and troubleshooting and enhanced security with hotfix updates — allowing easier server management for any IT infrastructure.Hardware Root-of-Trust SolutionDetect, recover, boot and protectASUS servers integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.Trusted Platform Module 2.0ASUS servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.NVIDIA Omniverse partnershipNVIDIA is dedicated to its partners and believes that a strong partnership is the foundation of mutual success.Strong partnership with 3D partnersConnect to the top industry apps your teams use every day, with plug-ins that enable live-sync collaboration and iteration across multiple software suites simultaneously — all brought together in Omniverse Enterprise.Full ASUS product lineup for Omniverse EnterpriseASUS has the world’s best PCs, servers, monitors and graphics cards. With an expanding range of superior content-creation and gaming products, ASUS leads the industry through innovation to create the most ubiquitous, intelligent productivity.Success casesReduce deployment risks with a complete suite of VMware data-center products for Omniverse EnterpriseServiceabilityImproved IT operational efficiencyTool-less CoverASUS servers feature three easy-access covers that can be opened without tools, enabling IT staff to perform maintenance on specific components without removing the server fully from the rack.Front-bezel Q-CodeASUS servers have a visible Q-Code/port-80 LED display LED for simple monitoring of the entire boot process, from power on through loading of the operating system.Hot-swap designASUS servers feature multiple hot-swap components, including fans, power supplies and storage for easy troubleshooting to keep 24/7 seamless operations.Performance4th Gen Intel® Xeon® Scalable ProcessorsThe 4th Gen Intel® Xeon® Scalable Processors are designed to accelerate performance across the fastest-growing workloads that businesses depend on today Built-in accelerators improve performance across AI, analytics, networking, storage, and HPC. By making the best use of CPU core resources, built-in accelerators can result in more efficient utilization and power efficiency advantages, helping businesses achieve their sustainability goals.
LongProductName - 4th Gen Intel Xeon Scalable, C741 Chipset, 16 x DDR5, 2 x 2.5”, 2 x 2.5” SATA/SAS, 2 x 3.5” SATA/SAS*/NVMe + 2 x 3.5” SATA/SAS, 2 x 1 Gigabit LAN, 1 x Management Port, 6x USB 3.2 Gen 1, 2x 1GbE LAn, 1 VGA, LED, 800mm x 439.5mm x 88.9mm (2U), 26 kg
LongSummaryDescription - ASUS 90SF0251-M004X0. Motherboard chipset: Intel C741, Processor manufacturer: Intel, Processor family: Intel® Xeon® Scalable. Supported memory types: DDR5-SDRAM. Storage drive sizes supported: 2.5,3.5,M.2, Supported storage drive interfaces: Serial ATA, Serial Attached SCSI (SAS). Ethernet interface type: Gigabit Ethernet, LAN controller: Intel® I350. Compatible operating systems: Windows Server RedHat® Enterprise Linux SuSE® Linux Enterprise Server CentOS Ubuntu Vmware
Power - 80 PLUS certification - 80 PLUS Titanium
Power - Power supply - 2600 W
Power - Number of redundant power supplies supported - 2
Power - Redundant power supply (RPS) support - Yes
Packaging data - Bundled software - ASUS Control Center
ASUS ASMB11-iKVM
Packaging data - Package weight - 36.8 kg

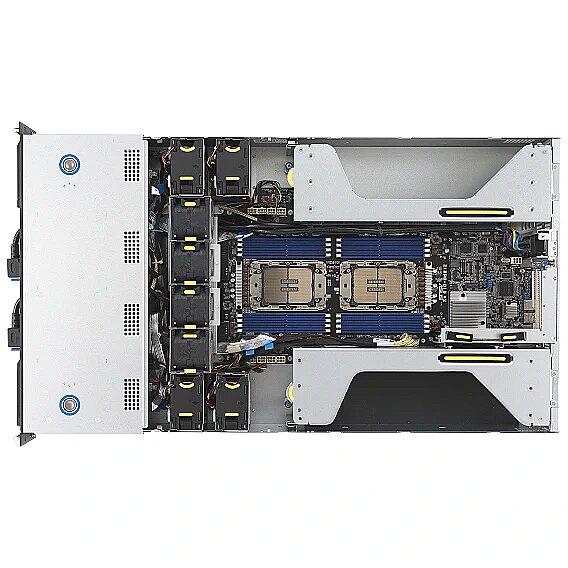

Title - ASUS 90SF0251-M004X0 server barebone Intel C741 Rack (2U) Black, Steel
Brand - ASUS
BrandPartCode - 90SF0251-M004X0
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - IPMI LAN (RJ-45) port - Yes
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 6
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Processor - Motherboard chipset - Intel C741
Processor - Processor manufacturer - Intel
Processor - Processor family - Intel® Xeon® Scalable
Processor - Built-in processor - No
producerCode - 90SF0251-M004X0
productName - ASUS 90SF0251-M004X0 server barebone Intel C741 Rack (2U) Black, Steel
productSize - Normal
ProductName - 90SF0251-M004X0
Storage - Hot-swap HDD bays - Yes
Storage - Number of 2.5" bays - 2
Storage - Number of 3.5" bays - 4
Storage - Storage drive sizes supported - 2.5
Storage - Storage drive sizes supported - 2.5,3.5,M.2
Storage - Storage drive sizes supported - 3.5"
Storage - Storage drive sizes supported - M.2
Storage - Supported storage drive interfaces - Serial ATA, Serial Attached SCSI (SAS)
Storage - Number of storage drives supported - 6
ShortSummaryDescription - ASUS 90SF0251-M004X0, Intel C741, Intel, Intel® Xeon® Scalable, DDR5-SDRAM, 2.5,3.5,M.2, Serial ATA, Serial Attached SCSI (SAS)
sizeY - 255
sizeZ - 595
weight - 32860
Weight & dimensions - Height - 88.9 mm
Weight & dimensions - Depth - 800 mm
Weight & dimensions - Width - 439.5 mm
Weight & dimensions - Weight - 26 kg
Network - Ethernet LAN - Yes
Network - Ethernet interface type - Gigabit Ethernet
Network - LAN controller - Intel® I350
URL - https://servers.asus.com/products/servers/gpu-servers/ESC4000-E11
warrantyLength - 36
