ID: 1019093
Produkto kodas: 52611
Galima užsisakyti 2 vnt. Prieinamumas: 14 dienų po užsakymo patvirtinimo
Garantija: 2 metų

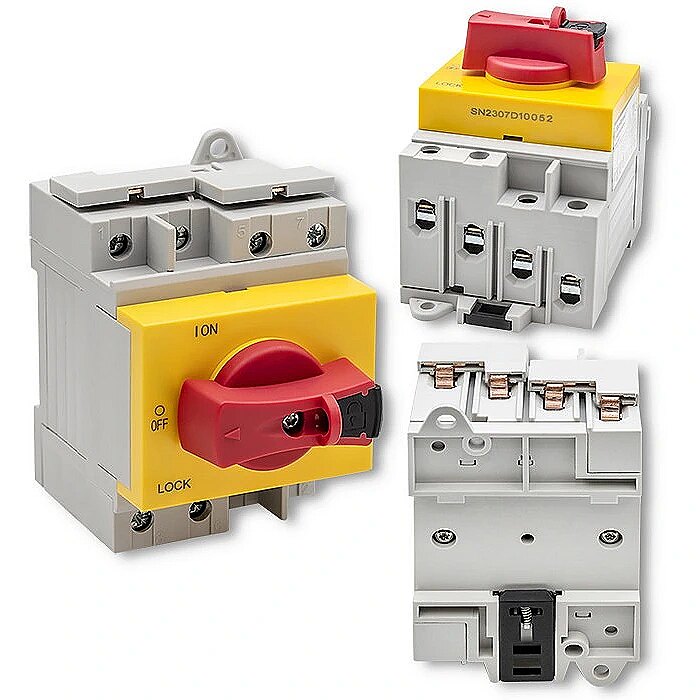

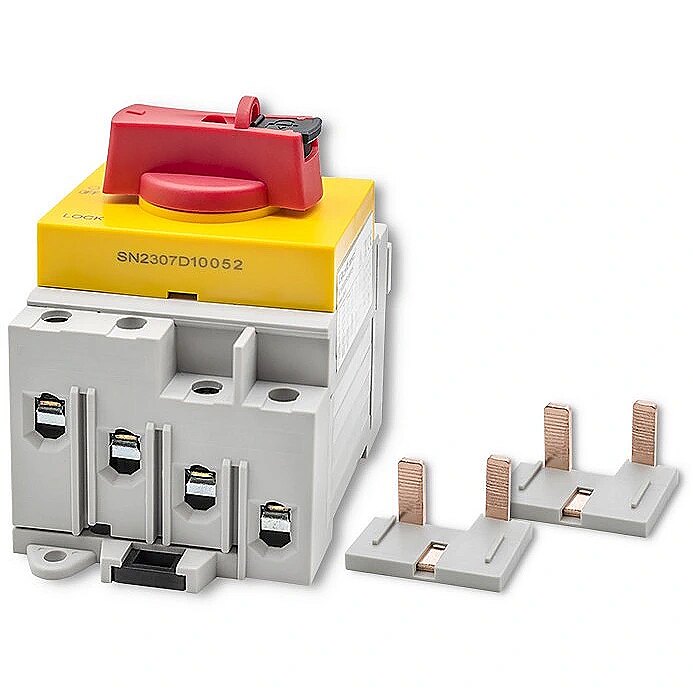

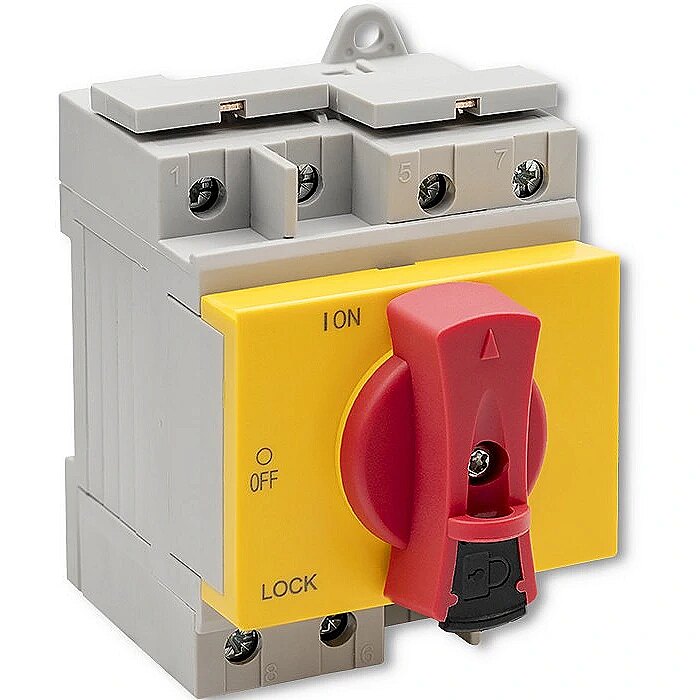

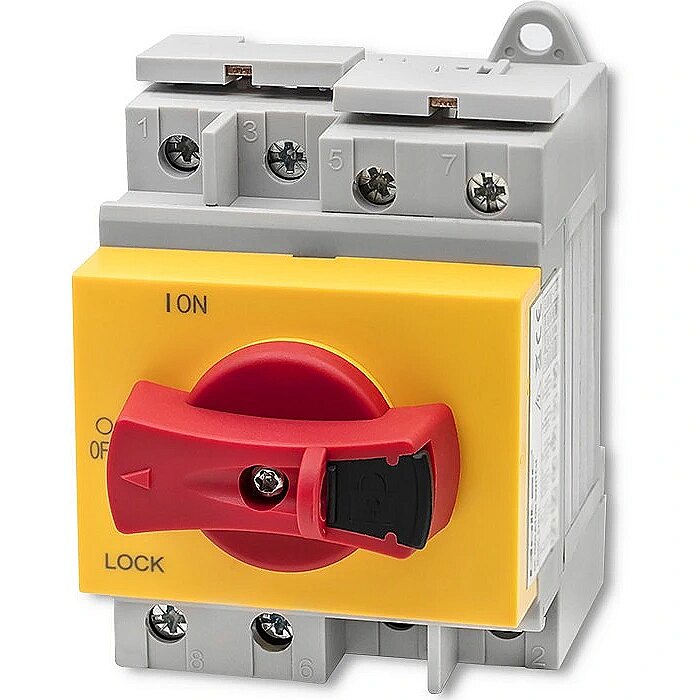

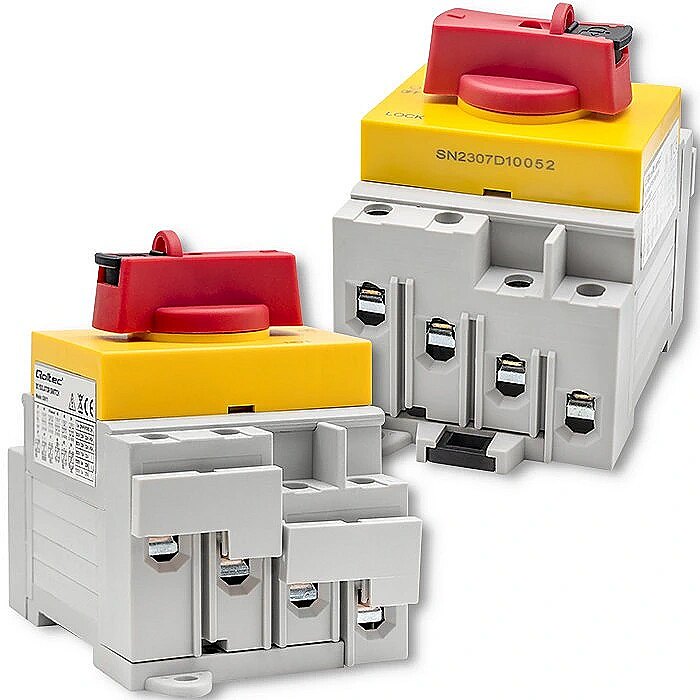

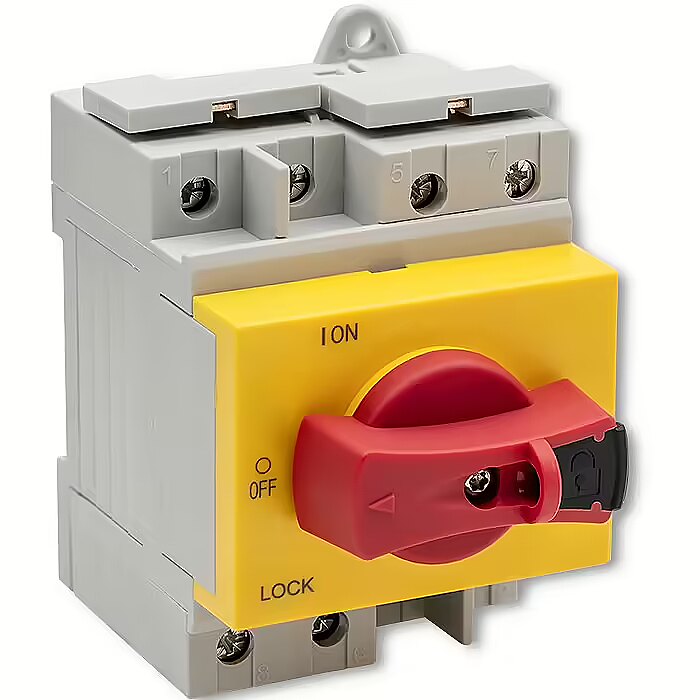

Qoltec 52611 DC isolator with locking function Main switch 1200V 32A 8kV 4P
Nuotrauka gali skirtis nuo tikrojo gaminio, gali būti priedų ir dalių, kurios nepateikiamos kartu su tikruoju gaminiu.
Pristatymo parinktys Daugiau apie pristatymą
- Pristatymas į Smartpost 1,99 €: 08.10.2024
- Atsiimkite Omniva terminale 1,99 €: 08.10.2024
- Atsiimkite DPD terminale 1,99 €: 08.10.2024
- Pristatymas į Lietuvos paštą 1,99 €: 08.10.2024
- Pristatymas Lietuvoje (DPD kurjerių paštas) 3,99 €: 08.10.2024
Išsamesnė specifikacija
Aprašymas - Ideal for photovoltaic professionals and amateurs
The DC circuit breaker from Qoltec, also known as an isolating disconnect switch, acts as a so-called main circuit breaker. It prevents short circuits, overloads and damage to the installation. It is used to safely disconnect the power supply and reconnect the DC circuits, i.e. to disconnect PV modules from the inverter, for example, or to stop the inverter in the event of a fault, or to isolate the circuit when carrying out work in switchgear.
Switch lock function

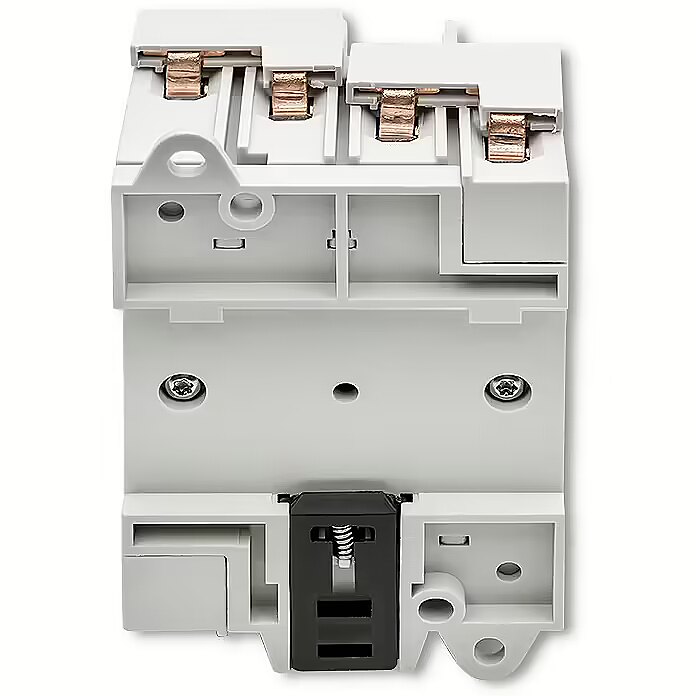

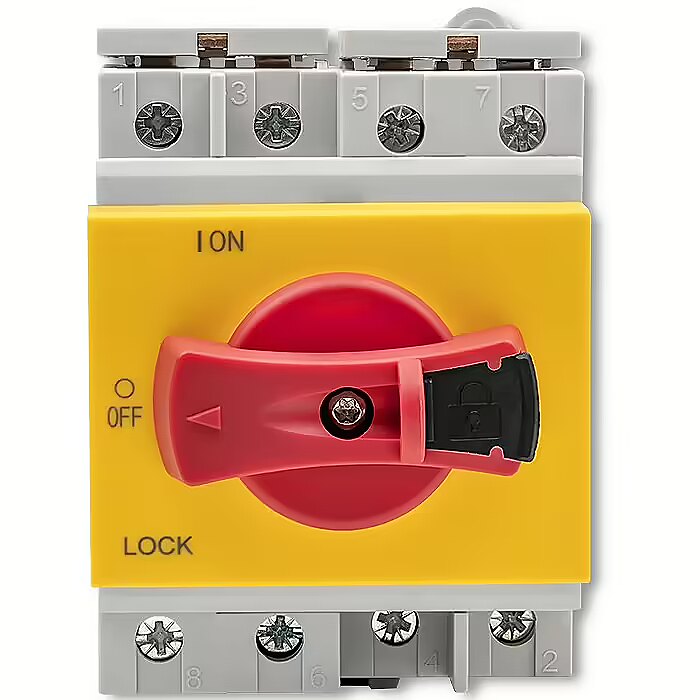

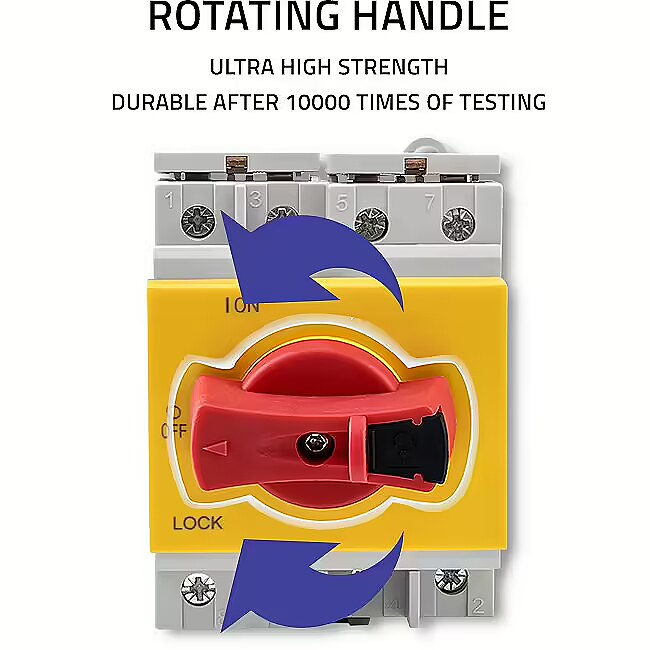

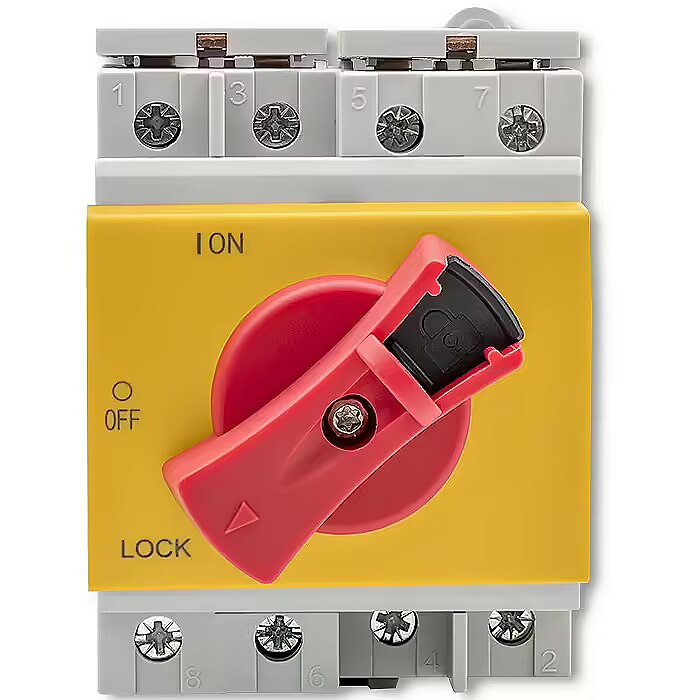

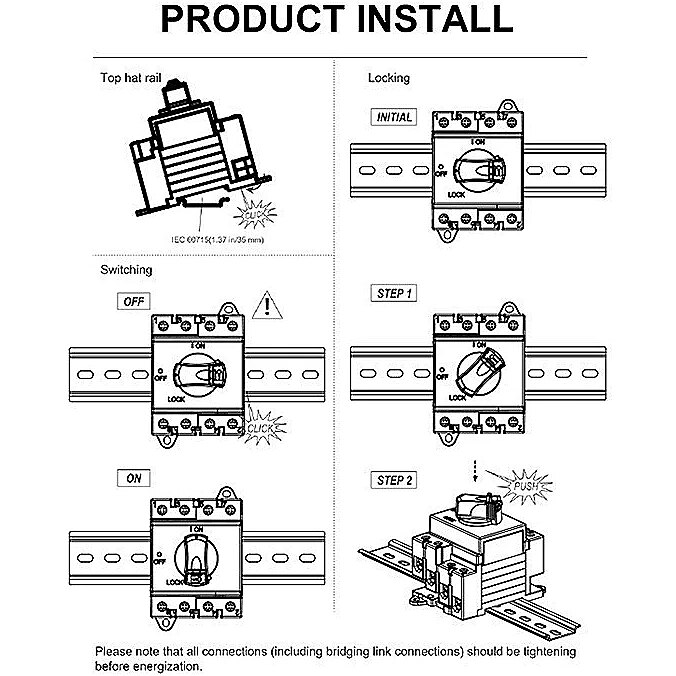

The product has an ON/OFF switch and a LOCK locking device, which effectively prevents the installation from being accidentally switched on. The switch can be placed in a switchboard on a TH-35 rail or surface-mounted with screws.
Safe photovoltaic installation
Every photovoltaic installation works on direct current, so it is important to ensure that its operation is fault-free and safe. To guarantee reliable operation and adequate protection, the installation should be equipped with a photovoltaic DC isolator, a so-called DC circuit breaker. This is usually installed between the photovoltaic panels and the solar inverter to isolate the PV panels during any maintenance work, for example. This makes it safe to carry out any repairs, replacements of damaged plant components or system extensions.
Apsaugos klasė - IP20
Darbinė temperatūra - -40C ~ +85C
dimensionalWeight - 138
dydisX - 103
ean - 5901878526119
Endurance test -
Features - Insulating material - PPO

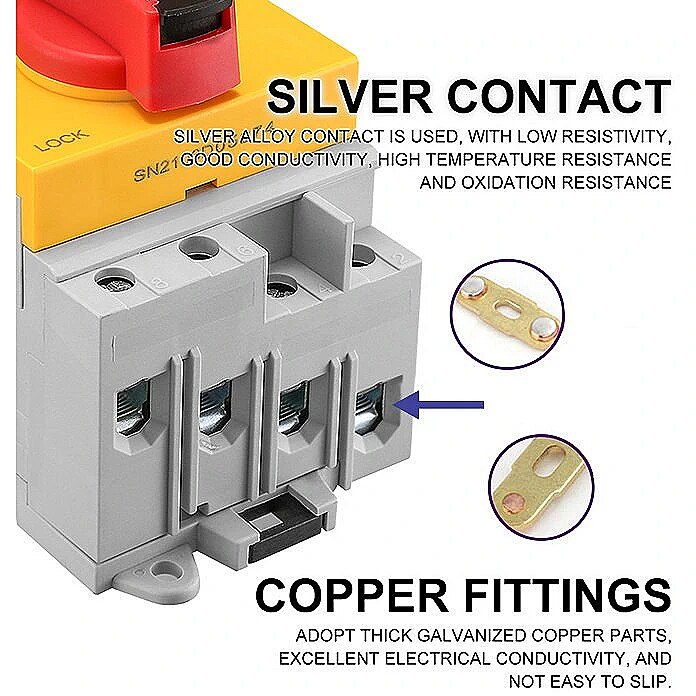

Funkcijos - medžiaga - PC + Silver alloy contact + copper fittings
Funkcijos - Nominalioji įtampa - 1200V
Funkcijos - Pradinė srovė - 8KV
Funkcijos - Stulpų skaičius - 4
Funkcijos - Tarptautinės apsaugos (IP) kodas - IP20
Funkcijos - vardinė srovė - 32A
Fuse - Ne
gamintojas - Qoltec
garantija - 24
garantijaType - G
garantijos_tipas - išorinis
Jungtys - Nėra
Kitos funkcijos -
Matmenys - (D/L x W x H): 89 x 62 x 95 mm
matmenų aukštis - 100 mm
matmenų gylis - 70 mm
matmenų plotis - 100 mm
matmuo svoris - 293 g
Nominali srovė - 32 A
Number of poles - 4
pavadinimas - DC isolator with locking function 1200V 32A 8kV
Pridedami priedai -
producerCode - 52611
productName - Qoltec 52611 DC isolator with locking function | Main switch | 1200V | 32A | 8kV | 4P
productSize - Normalus
Savybės - Darbinė temperatūra (maks.) - 85 °C
Savybės - Darbinė temperatūra (min) - -40℃
sizeY - 99
sizeZ - 68
Svoris - 0.264 kg
svoris - 292
Svoris ir matmenys - Aukštis - 95 mm
Svoris ir matmenys - Gylis - 89 mm
Svoris ir matmenys - Plotis - 62 mm
Svoris ir matmenys - Svoris - 264 g
vendpn - 52611
warrantyLength - 24
įtampa (maks.) - 1200 V
The DC circuit breaker from Qoltec, also known as an isolating disconnect switch, acts as a so-called main circuit breaker. It prevents short circuits, overloads and damage to the installation. It is used to safely disconnect the power supply and reconnect the DC circuits, i.e. to disconnect PV modules from the inverter, for example, or to stop the inverter in the event of a fault, or to isolate the circuit when carrying out work in switchgear.
Switch lock function
The product has an ON/OFF switch and a LOCK locking device, which effectively prevents the installation from being accidentally switched on. The switch can be placed in a switchboard on a TH-35 rail or surface-mounted with screws.
Safe photovoltaic installation
Every photovoltaic installation works on direct current, so it is important to ensure that its operation is fault-free and safe. To guarantee reliable operation and adequate protection, the installation should be equipped with a photovoltaic DC isolator, a so-called DC circuit breaker. This is usually installed between the photovoltaic panels and the solar inverter to isolate the PV panels during any maintenance work, for example. This makes it safe to carry out any repairs, replacements of damaged plant components or system extensions.
Apsaugos klasė - IP20
Darbinė temperatūra - -40C ~ +85C
dimensionalWeight - 138
dydisX - 103
ean - 5901878526119
Endurance test -
Features - Insulating material - PPO
Funkcijos - medžiaga - PC + Silver alloy contact + copper fittings
Funkcijos - Nominalioji įtampa - 1200V
Funkcijos - Pradinė srovė - 8KV
Funkcijos - Stulpų skaičius - 4
Funkcijos - Tarptautinės apsaugos (IP) kodas - IP20
Funkcijos - vardinė srovė - 32A
Fuse - Ne
gamintojas - Qoltec
garantija - 24
garantijaType - G
garantijos_tipas - išorinis
Jungtys - Nėra
Kitos funkcijos -
Matmenys - (D/L x W x H): 89 x 62 x 95 mm
matmenų aukštis - 100 mm
matmenų gylis - 70 mm
matmenų plotis - 100 mm
matmuo svoris - 293 g
Nominali srovė - 32 A
Number of poles - 4
pavadinimas - DC isolator with locking function 1200V 32A 8kV
Pridedami priedai -
producerCode - 52611
productName - Qoltec 52611 DC isolator with locking function | Main switch | 1200V | 32A | 8kV | 4P
productSize - Normalus
Savybės - Darbinė temperatūra (maks.) - 85 °C
Savybės - Darbinė temperatūra (min) - -40℃
sizeY - 99
sizeZ - 68
Svoris - 0.264 kg
svoris - 292
Svoris ir matmenys - Aukštis - 95 mm
Svoris ir matmenys - Gylis - 89 mm
Svoris ir matmenys - Plotis - 62 mm
Svoris ir matmenys - Svoris - 264 g
vendpn - 52611
warrantyLength - 24
įtampa (maks.) - 1200 V
Description - Ideal for photovoltaic professionals and amateurs
The DC circuit breaker from Qoltec, also known as an isolating disconnect switch, acts as a so-called main circuit breaker. It prevents short circuits, overloads and damage to the installation. It is used to safely disconnect the power supply and reconnect the DC circuits, i.e. to disconnect PV modules from the inverter, for example, or to stop the inverter in the event of a fault, or to isolate the circuit when carrying out work in switchgear.
Switch lock function
The product has an ON/OFF switch and a LOCK locking device, which effectively prevents the installation from being accidentally switched on. The switch can be placed in a switchboard on a TH-35 rail or surface-mounted with screws.
Safe photovoltaic installation
Every photovoltaic installation works on direct current, so it is important to ensure that its operation is fault-free and safe. To guarantee reliable operation and adequate protection, the installation should be equipped with a photovoltaic DC isolator, a so-called DC circuit breaker. This is usually installed between the photovoltaic panels and the solar inverter to isolate the PV panels during any maintenance work, for example. This makes it safe to carry out any repairs, replacements of damaged plant components or system extensions.
Protection class - IP20
Operating temperature - -40C ~ +85C
dimensionalWeight - 138
sizeX - 103
ean - 5901878526119
Endurance test -
Features - Insulating material - PPO
Features - Substance - PC + Silver alloy contact + copper fittings
Features - Rated voltage - 1200V
Features - Starting current - 8KV
Features - Number of poles - 4
Features - International Protection (IP) code - IP20
Features - Rated current - 32A
Fuse - No
producer - Qoltec
guarantee - 24
warrantyType - G
guarantee_type - external
Connectors - None
Other features -
Dimensions - (D/L x W x H): 89 x 62 x 95 mm
dimension height - 100 mm
dimension depth - 70 mm
dimension width - 100 mm
dimension weight - 293 g
Rated current - 32 A
Number of poles - 4
name - DC isolator with locking function 1200V 32A 8kV
Accessories included -
producerCode - 52611
productName - Qoltec 52611 DC isolator with locking function | Main switch | 1200V | 32A | 8kV | 4P
productSize - Normal
Features - Working temperature (max) - 85 °C
Features - Working temperature (min) - -40℃
sizeY - 99
sizeZ - 68
Weight - 0.264 kg
weight - 292
Weight & dimensions - Height - 95 mm
Weight & dimensions - Depth - 89 mm
Weight & dimensions - Width - 62 mm
Weight & dimensions - Weight - 264 g
vendpn - 52611
warrantyLength - 24
voltage (max.) - 1200 V
The DC circuit breaker from Qoltec, also known as an isolating disconnect switch, acts as a so-called main circuit breaker. It prevents short circuits, overloads and damage to the installation. It is used to safely disconnect the power supply and reconnect the DC circuits, i.e. to disconnect PV modules from the inverter, for example, or to stop the inverter in the event of a fault, or to isolate the circuit when carrying out work in switchgear.
Switch lock function
The product has an ON/OFF switch and a LOCK locking device, which effectively prevents the installation from being accidentally switched on. The switch can be placed in a switchboard on a TH-35 rail or surface-mounted with screws.
Safe photovoltaic installation
Every photovoltaic installation works on direct current, so it is important to ensure that its operation is fault-free and safe. To guarantee reliable operation and adequate protection, the installation should be equipped with a photovoltaic DC isolator, a so-called DC circuit breaker. This is usually installed between the photovoltaic panels and the solar inverter to isolate the PV panels during any maintenance work, for example. This makes it safe to carry out any repairs, replacements of damaged plant components or system extensions.
Protection class - IP20
Operating temperature - -40C ~ +85C
dimensionalWeight - 138
sizeX - 103
ean - 5901878526119
Endurance test -
Features - Insulating material - PPO
Features - Substance - PC + Silver alloy contact + copper fittings
Features - Rated voltage - 1200V
Features - Starting current - 8KV
Features - Number of poles - 4
Features - International Protection (IP) code - IP20
Features - Rated current - 32A
Fuse - No
producer - Qoltec
guarantee - 24
warrantyType - G
guarantee_type - external
Connectors - None
Other features -
Dimensions - (D/L x W x H): 89 x 62 x 95 mm
dimension height - 100 mm
dimension depth - 70 mm
dimension width - 100 mm
dimension weight - 293 g
Rated current - 32 A
Number of poles - 4
name - DC isolator with locking function 1200V 32A 8kV
Accessories included -
producerCode - 52611
productName - Qoltec 52611 DC isolator with locking function | Main switch | 1200V | 32A | 8kV | 4P
productSize - Normal
Features - Working temperature (max) - 85 °C
Features - Working temperature (min) - -40℃
sizeY - 99
sizeZ - 68
Weight - 0.264 kg
weight - 292
Weight & dimensions - Height - 95 mm
Weight & dimensions - Depth - 89 mm
Weight & dimensions - Width - 62 mm
Weight & dimensions - Weight - 264 g
vendpn - 52611
warrantyLength - 24
voltage (max.) - 1200 V
